What are the supported pass-through and capture resolutions and frame rates for the GC553 Pro? Additionally, what is the maximum recording resolution and frame rate (FPS) for each video format?

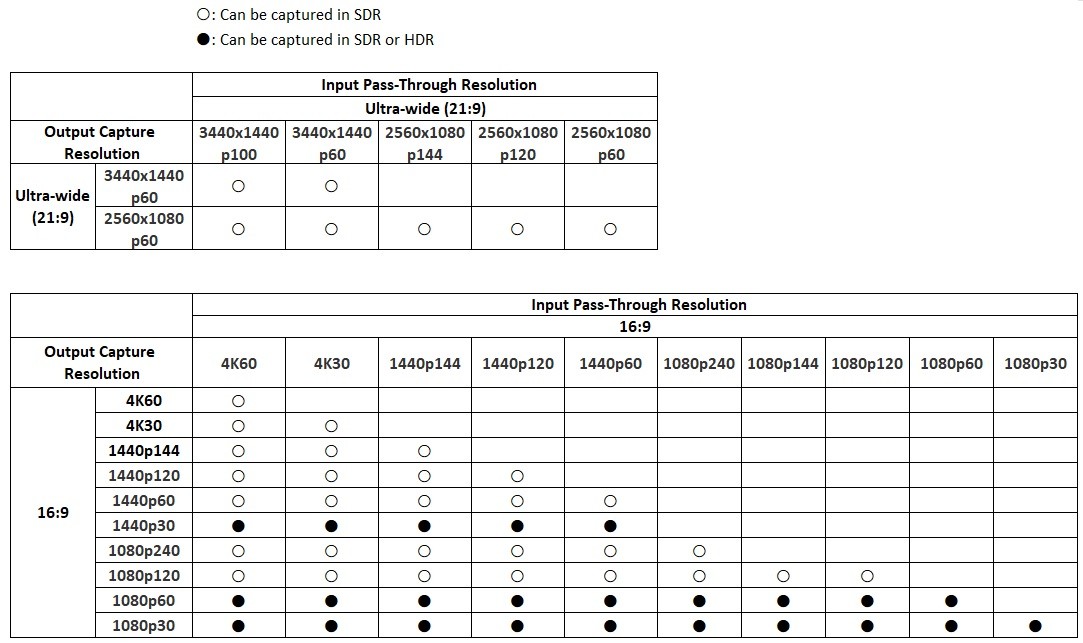

Please refer to the supported passthrough and capture resolutions below. For each input resolution, the supported capture resolution is shown as supported by GC553Pro.


○: Can be captured in SDR
●: Can be captured in SDR or HDR

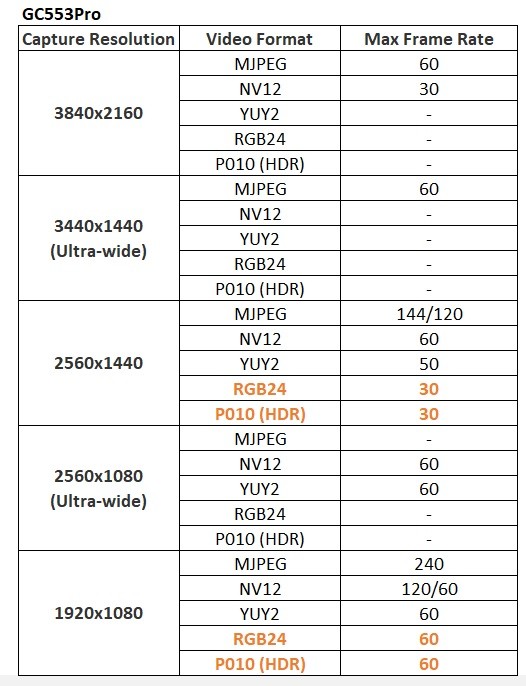

Capture Video Format Specifications

Please refer to the list below for resolutions and frame rates that can be captured
Orange Color: Windows Only




Summary:
MJPEG: 3840x2160p60、3440x1440p60、2560x1440p144、 1920x1080p240
NV12：3840x2160p30、2560x1440p60、2560X1080p60、 1920x1080p60
YUY2：2560x1440p50、2560X1080p60 1920x1080p60
RGB24(Windows only)：2560x1440p30、 1920x1080p60
P010(HDR 10)(Windows only)：3840x2160p30、2560x1440p30、 1920x1080p60
