How to Set Up Your NAS Using ER330？

1 First, ensure that the following devices are connected to the same network (same IP address):   ER330 LAN port ,   your NAS LAN port,  your computer's LAN port

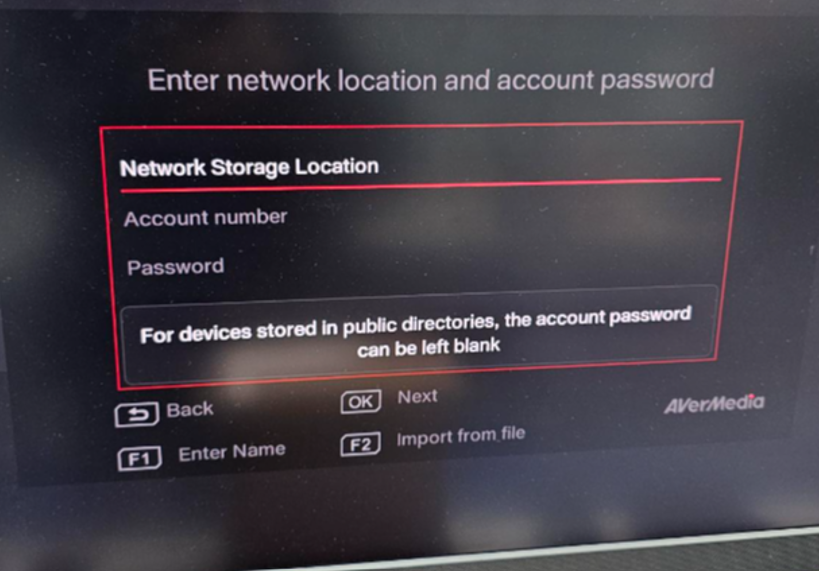

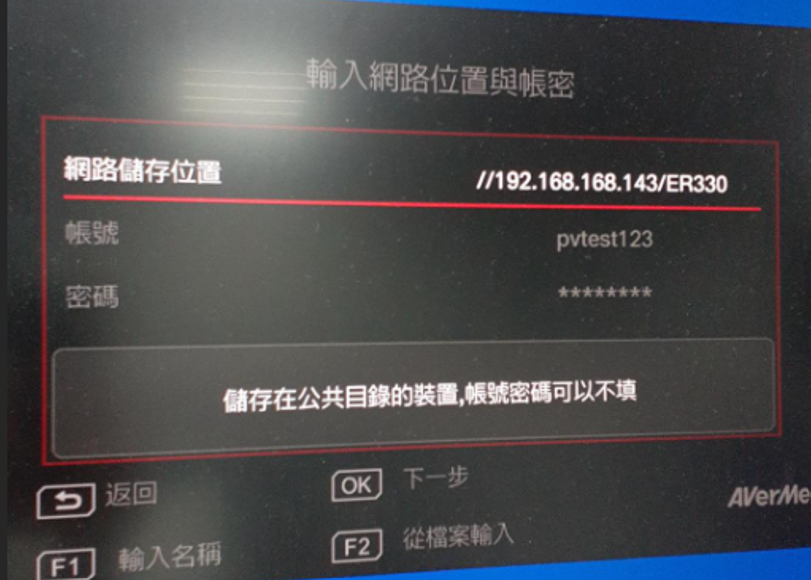

2 Access the network location and account password directory.

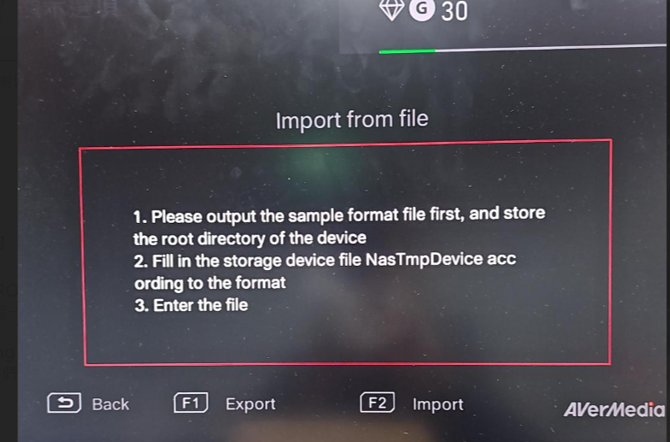

Press [F1] to export the NAS configuration file.。

Step3

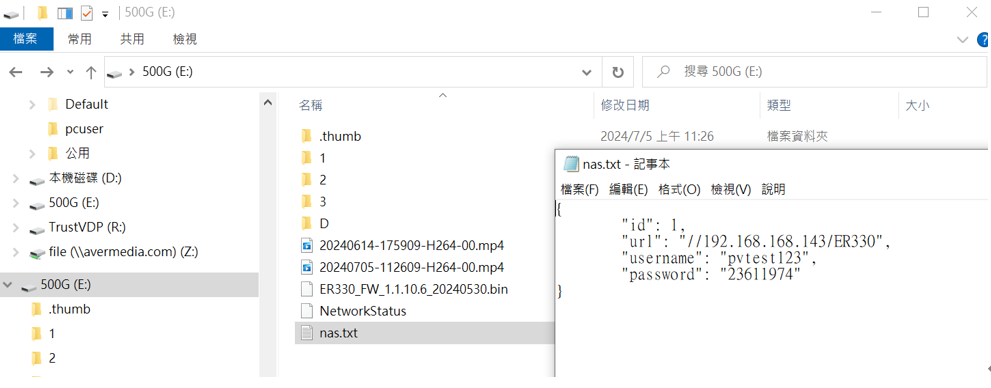

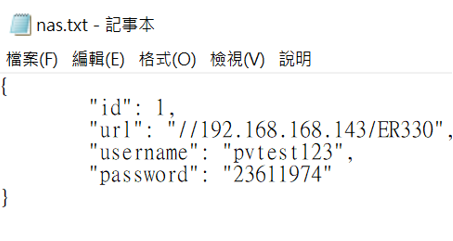

On your external hard drive, create a text file (.txt) with the following information:

• “xxx.xxx.x.x/ shared folder” ID
• Type your "account name"
• Type your "password"

In the following interface, press [F2] and import the text file from your external hard drive into the ER330.

Click "Next."

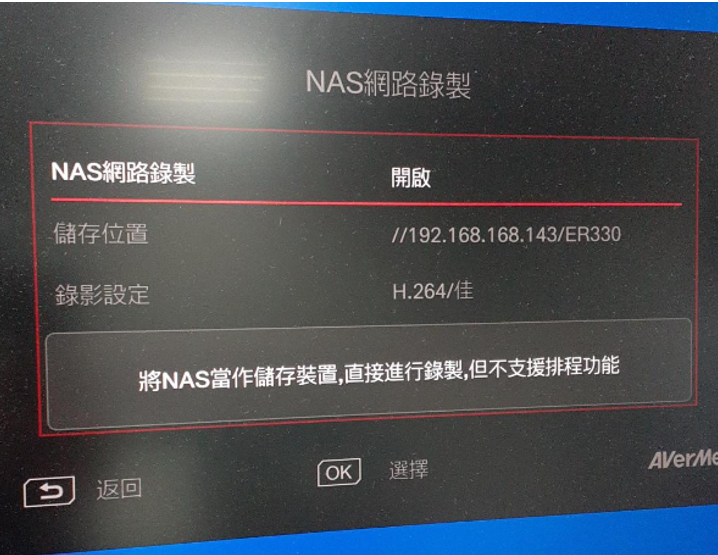

When you see the following configuration information, the setup is successful.

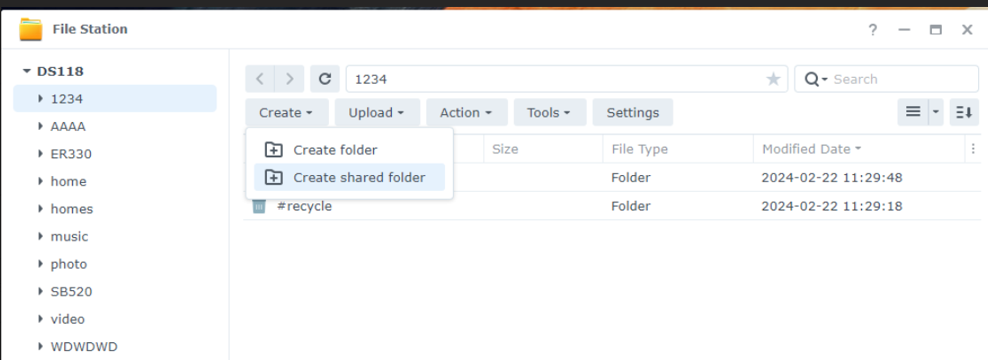

Note: You need to create a shared folder on your NAS. A shared folder is the basic directory where you can store and manage files and folders on your NAS. You need to create a shared folder before storing any files.

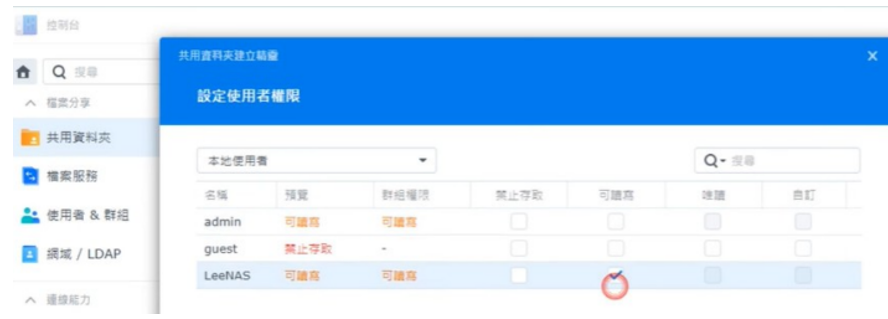

. You need to create a shared folder before storing any files. Please ensure that the folder permissions are set to read and write.
